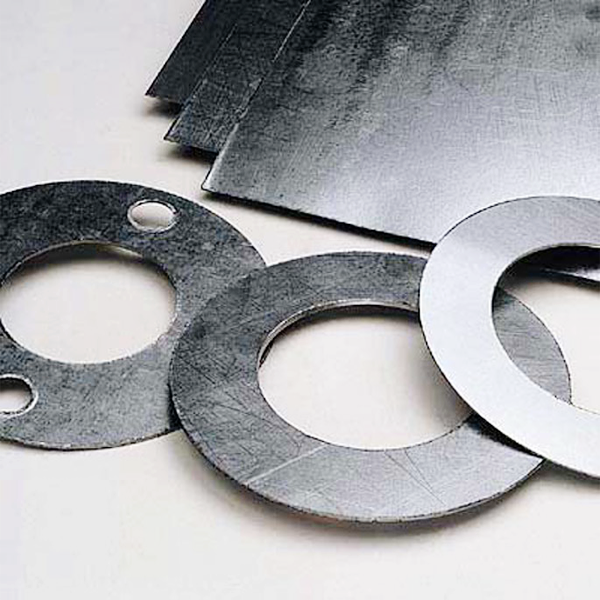

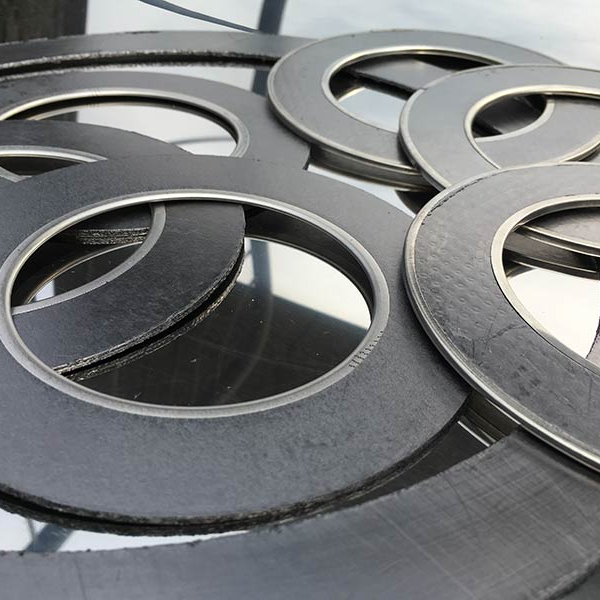

At R4 Gaskets, our premium graphite gaskets are designed for high-temperature and high-pressure sealing applications. Available in three grades and various thickness options, our graphite gaskets can be customised to meet your unique requirements and applications.
Key Features of Graphite Gaskets
One of the standout features of our graphite gaskets is their excellent low-friction surface, which ensures superior durability and allows for continuous use without warping or deterioration. Additionally, graphite gaskets are impermeable to gases and liquids, making them ideal for steam cycling applications.
To enhance strength and durability, our graphite gaskets can be reinforced with various metal cores, offering different composition options tailored to your specific needs. This customisation ensures that you get the precise properties required for your application.
Material Composition Options
- Homogeneous Graphite
- Maximum Operating Temperature: 500°C (dry), 650°C (steam)
- Maximum Pressure: 40 Bar
Free from fibres, binders, or additives, this grade offers superior flexibility to fill surface imperfections. Commonly used in metal jacketed gaskets, heat exchanger gaskets, and corrugated metal gaskets.
- Stainless Steel Foil Graphite
- Maximum Operating Temperature: 500°C (dry), 650°C (steam)
- Maximum Pressure: 140 Bar
Reinforced with stainless steel foil, this grade maintains high flexibility while enhancing durability for demanding applications such as metal jacketed and heat exchanger gaskets.
- Stainless Steel Tang Graphite
- Maximum Operating Temperature: 500°C (dry), 650°C (steam)
- Maximum Pressure: 140 Bar
Made from expanded graphite foil reinforced with 0.10mm thick tanged stainless steel. This grade offers excellent high-pressure resistance and superior compression, ideal for steam systems and flange gaskets in piping and machinery.
Potential Applications
- Refineries
- Chemical & petrochemical plants
- Paper mills
- Industrial fluid sealing
- Vibration dampening
- Steam services
- Electrochemical applications
Specifications
- Application: High durability gaskets for use in sealing applications
- Product: Graphite Gaskets
- Density: 1.1g/cm³
- Material Options: Homogeneous graphite, Stainless steel foil graphite, Stainless steel tang graphite
Contact Us
For reliable, high-performance graphite gaskets tailored to your needs, trust R4 Gaskets. Our expert team is ready to assist you in selecting the right grade and specifications for your application. Contact us today to learn more about our graphite gasket solutions and how we can meet your sealing needs.
