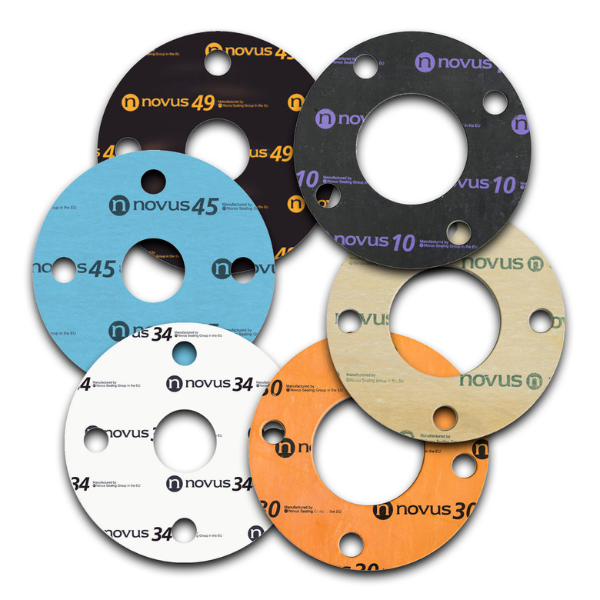

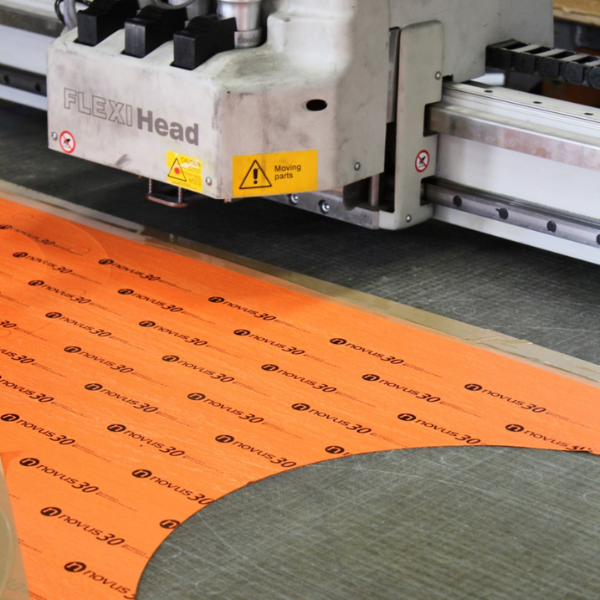

Our extensive range of Novus non-asbestos gaskets delivers exceptional sealing capabilities in both high-temperature and high-pressure applications. These gaskets are available in various material specifications to meet your specific needs. We also offer custom gasket manufacturing tailored to your exact requirements.
The Importance of Gaskets
Though often hidden from view, gaskets play a critical role in numerous industries and applications. They create a mechanical seal that fills the space between two or more surfaces, preventing leaks under compression. High-quality gaskets can also compensate for irregularities between slightly uneven surfaces.
Why Choose Novus® Non-Asbestos Gaskets?
Novus® non-asbestos gaskets are engineered to offer the same superior resistance properties as asbestos-based gaskets, but without the associated health risks. These gaskets provide enhanced safety and durability, making them 100% safe for human contact.

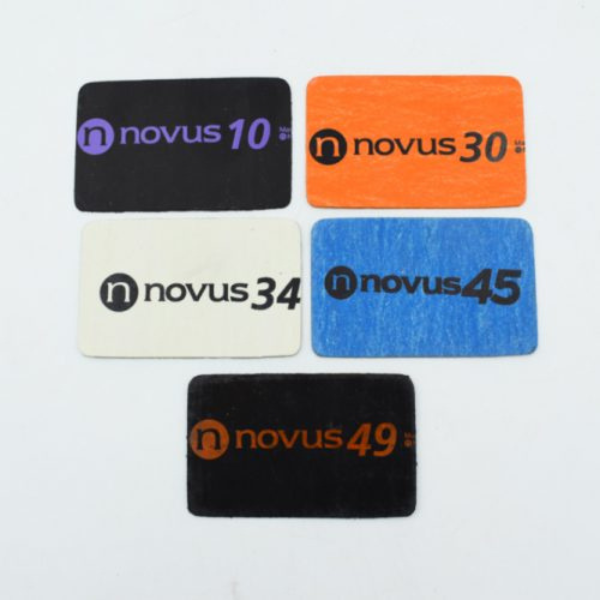

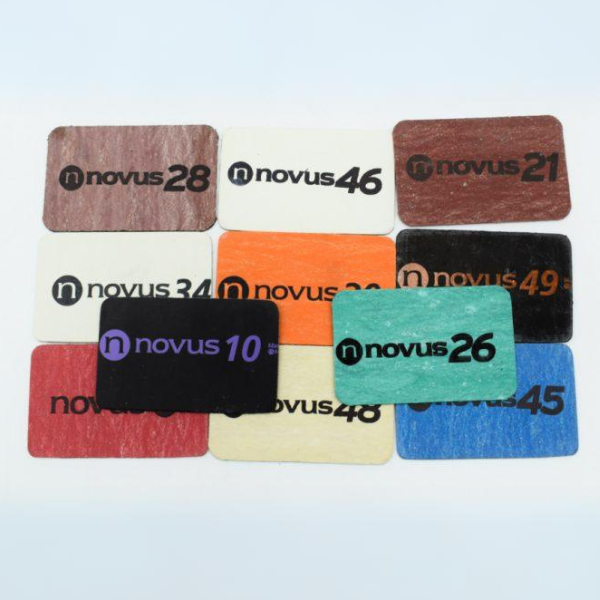

Different Material Grades
Novus 10 (Black)
- Maximum Operating Temperature: 425°C
- Maximum Pressure: 100 Bar
Reinforced with carbon fibre and combined with a high-quality Nitrile rubber binder, this grade offers excellent creep resistance and steam resistance. Suitable for alkalis, fuels, and refrigerants.
Novus 20 (Yellow)
- Maximum Operating Temperature: 400°C
- Maximum Pressure: 80 Bar
A versatile general-purpose grade made from aramid fibres bound by Nitrile rubber. Ideal for hot and cold-water applications, steam, oils, fuels, gases, and various chemicals.
Novus 30 (Orange)
- Maximum Operating Temperature: 400°C
- Maximum Pressure: 80 Bar
Combines aramid and inorganic fibres with a Nitrile rubber binder, providing good resistance to extreme temperatures, water, steam, common chemicals, and fuels.
Novus 34 (White)
- Maximum Operating Temperature: 450°C
- Maximum Pressure: 100 Bar
Utilizes special additives with aramid fibres and Nitrile rubber binder for superior high-temperature and pressure resistance. Designed for high-pressure steam, gases, oils, and solvents.
Novus 45 (Blue)
- Maximum Operating Temperature: 300°C
- Maximum Pressure: 60 Bar
A medium-quality, cost-effective general service material made from part recycled and virgin fibres. Suitable for oils, solvents, gases, water, low-pressure steam, and mild chemicals.
Novus 49 (Black)
- Maximum Operating Temperature: 420°C
- Maximum Pressure: 100 Bar
High-performance grade with a high percentage of graphite, reinforced with aramid fibres and a Nitrile binder. Excellent resistance to high-pressure steam, gases, oils, and solvents.
Specifications
- Application: Sealing in highly demanding applications and environments
- Product: Novus Non-Asbestos Gaskets
- Density: 1.57 – 2.00 g/cc
- Material: Natural and synthetic fibres, Nitrile binder
- Colour: Black, White, Orange, Blue, Yellow, Red, Green (depending on grade)
Potential Applications
- Petrochemical
- Oil & Gas
- Marine
- Power Generation
- Mining
- Aerospace
- Automotive
- Water Treatment
- General Engineering
Explore our full range of Novus non-asbestos gaskets and find the perfect solution for your high-demand applications. Contact us today to discuss your specific requirements and let us help you achieve optimal sealing performance.
